Ikar

Eye-catching presentation of products
  • Minimum possible height of the bottom front to extend vertical display
  • Maximum visibility of products and customer intimacy
  • Top led backlight of the inside
High cooling efficiency
  • Sest High-performance evaporator, Italy
  • Innovative airflow control system
  • Low cooling consumption
Тип холодообеспечения Диапазон температур Хладагент
Remote +1...+7°C
+3...+7°C
-1...+2°C
404A

Description

Ikar. Semi-verticals.

Open-type design and efficient merchandising

The open-type design of the Ikar vertical refrigerated case invites customers to the display located centrally in the retail space.

Maximum visibility of each product is provided by the top led lighting and convenient stepwise arrangement of shelves. The improved ergonomics of the Ikar cooling shelf allows for the display to be extended and shows more fresh products. Customer intimacy and the ease of access to products suggest choosing and buying. Efficient merchandising makes Ikar cooling shelves an effective tool to increase sales.

The perfect height of the Ikar vertical case lets customers observe the entire retail space and provides additional visibility.

Technical specifications

Model
Modules
Temperature ranges,
°C
Case lenght without end walls,
mm
Case lenght with end walls,
mm
Case depth,
mm
Case height,
mm
Package lenght,
mm
Package depth,
mm
Package height,
mm
Net weight,
kg
Gross weight,
kg
Display area,
m2
Volume area,
m3
Base shelf depth,
mm
Refrigeration capacity,
kW
Energy consumption,
kW per day
Max power,
W
Voltage,
V
Maximum current,
A
Ikar125+1…+712501320100015401490117017501301802,90,8800*1,21,70,072200,3
Ikar190+1…+718751945100015402110117017502002504,41,2800*1,93,120,132200,6
Ikar250+1…+725002570100015402740117017502603205,81,6800*2,53,40,142200,7
Ikar375+1…+737503820100015404010117017503904608,72,4800*3,75,10,212201
Ikarторц+1…+719502020100015402180117017502002504,51,24800*1,923,120,132200,6

Key features

Standard Features

  • Energy-saving top led lighting on the inside
  • 3 rows of 400, 500, 600 mm deep shelves with adjustable sloping
  • Price tags on the shelves
  • Sest innovative evaporator, Italy
  • Danfoss thermostatic expansion valve
  • Danfoss controller (supportive of the master/slave mode)
  • Drainage system connection kit
  • Upper and lower colour panels, a choice of the cabinet’s interior colour scheme
  • No side pieces
  • Reinforced wooden packaging

Options

  • Additional energy-saving led backlight of shelves
  • 50 and 100 mm high shelf wire fences
  • Energy-saving magnetic night blinds
  • Energy-saving fans
  • Electric defrosting kit
  • Network interface controller for connection to the monitoring system
  • Side piece modifications:
    • look-through with double glazing
    • two-side mirror
    • “blind” metal with a mirror inside the cabinet (the volume of the case)
  • Alignment of same-type cases

Colors


Drawings

Ikar
Ikar торц 250
Ikar торц

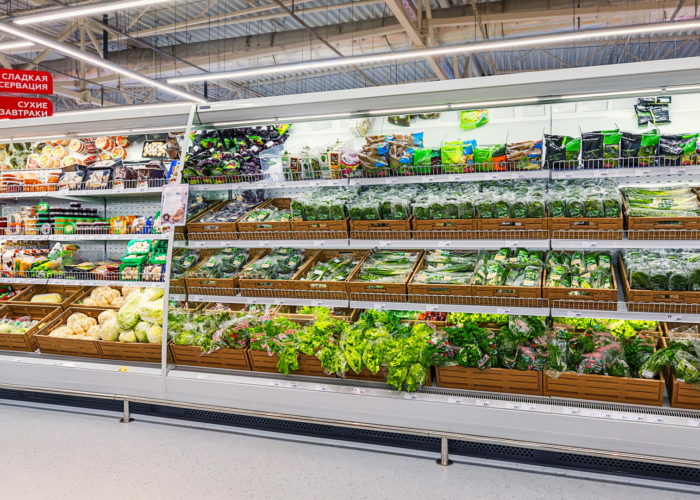

Product photos
